Struts 2 and iText PDF Report Integration Example


In this tutorial, we have integrated the Struts 2 and iText to generated the PDF report. iText is an open source and widely used with Java to create the PDF report. It provides the classes they help to generate the report.

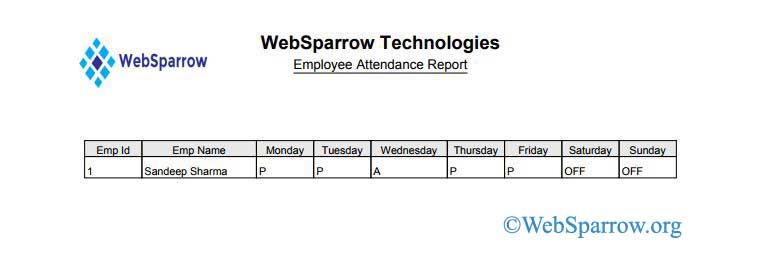

In our example, we have simply created the PDF report using static values.

Similar Post- Struts 2 + iText + MySQL Dynamic PDF Report Example

Software Used

In our example, we have used the below software/jars.

  1. Eclipse IDE
  2. Tomcat 8
  3. JDK 8

Required Dependencies

You can directly add all core JARs of struts2.x.x and iText5.x.x in your application or add below to your pom.xml if your application maven based.

pom.xml
<dependencies>
    <dependency>
        <groupId>org.apache.struts</groupId>
        <artifactId>struts2-core</artifactId>
        <version>2.3.16</version>
    </dependency>
    <dependency>
        <groupId>com.itextpdf</groupId>
        <artifactId>itextpdf</artifactId>
        <version>5.0.6</version>
    </dependency>
</dependencies>

Project Structure in Eclipse

Struts 2 and iText PDF Report Integration Example

Add Struts 2 Filter

Define the struts 2 filters in web.xml.

web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
         id="WebApp_ID" version="2.5">
    <display-name>Struts2iTextPdfReportExamaple</display-name>
    <welcome-file-list>
        <welcome-file>report.jsp</welcome-file>
    </welcome-file-list>
    <filter>
        <filter-name>struts2</filter-name>
        <filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>struts2</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
</web-app>

Action Class

Create an action class.

ReportAction.java
package org.websparrow;

import java.io.FileInputStream;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.apache.struts2.ServletActionContext;
import org.apache.struts2.interceptor.ServletRequestAware;
import org.apache.struts2.interceptor.ServletResponseAware;

import com.itextpdf.text.BaseColor;
import com.itextpdf.text.Document;
import com.itextpdf.text.Element;
import com.itextpdf.text.Font;
import com.itextpdf.text.FontFactory;
import com.itextpdf.text.Image;
import com.itextpdf.text.PageSize;
import com.itextpdf.text.Paragraph;
import com.itextpdf.text.Phrase;
import com.itextpdf.text.Rectangle;
import com.itextpdf.text.pdf.PdfPCell;
import com.itextpdf.text.pdf.PdfPTable;
import com.itextpdf.text.pdf.PdfReader;
import com.itextpdf.text.pdf.PdfStamper;
import com.opensymphony.xwork2.ActionSupport;

public class ReportAction extends ActionSupport implements ServletRequestAware, ServletResponseAware {
	private static final long serialVersionUID = -1517087746057956540L;
	private HttpServletRequest request;
	private HttpServletResponse response;

	@Override
	public String execute() throws Exception {
		try {

			// Creating document and set the page size
			Document document = new Document(PageSize.A4, 20, 20, 20, 20);
			String imagePath = ServletActionContext.getServletContext().getRealPath("/assets");
			PdfWriter writer = PdfWriter.getInstance(document, new FileOutputStream(imagePath + "/temp1" + ".pdf"));
			document.open();

			// Add image on the document
			Image image = Image.getInstance(imagePath + "/ws.jpg");
			image.scaleToFit(90f, 90f);
			image.setAlignment(Image.MIDDLE);
			image.setAbsolutePosition(70, 770);
			image.scaleAbsolute(100, 40);
			document.add(image);

			// Creating the paragraph and add it to document
			Paragraph p1 = new Paragraph(" WebSparrow Technologies ",
					FontFactory.getFont(FontFactory.HELVETICA, 14, Font.BOLD, new BaseColor(0, 0, 0)));

			Paragraph p2 = new Paragraph("Employee Attendance Report",
					FontFactory.getFont(FontFactory.HELVETICA, 10, Font.UNDERLINE, new BaseColor(0, 0, 0)));
			Paragraph p3 = new Paragraph("\n\n\n");
			p1.setAlignment(Element.ALIGN_CENTER);
			p2.setAlignment(Element.ALIGN_CENTER);
			document.add(p1);
			document.add(p2);
			document.add(p3);

			// Create table and set the width of columns
			PdfPTable t = new PdfPTable(9);
			float widths[] = { 3, 6, 3, 3, 4, 3, 3, 3, 3 };
			t.setWidths(widths);
			t.setHeaderRows(1);
			t.setTotalWidth(100f);

			// Add table header row
			PdfPCell c1 = new PdfPCell(new Phrase("Emp Id", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth((float) 0.25);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			c1 = new PdfPCell(new Phrase("Emp Name", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth(0.25f);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			c1 = new PdfPCell(new Phrase("Monday", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth(0.25f);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			c1 = new PdfPCell(new Phrase("Tuesday", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth(0.25f);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			c1 = new PdfPCell(new Phrase("Wednesday", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth((float) 0.25);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			c1 = new PdfPCell(new Phrase("Thursday", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth(0.25f);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			c1 = new PdfPCell(new Phrase("Friday", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth(0.25f);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			c1 = new PdfPCell(new Phrase("Saturday", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth(0.25f);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			c1 = new PdfPCell(new Phrase("Sunday", FontFactory.getFont(FontFactory.HELVETICA, 8)));
			c1.setBorderWidth(0.25f);
			c1.setBackgroundColor(new BaseColor(232, 232, 232));
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			c1.setVerticalAlignment(Element.ALIGN_MIDDLE);
			t.addCell(c1);

			// Add the table details row
			Phrase ph;
			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("1", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("Sandeep Sharma", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("P", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("P", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("A", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("P", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("P", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("OFF", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			c1 = new PdfPCell();
			c1.setBorderWidth((float) 0.25);
			c1.setHorizontalAlignment(Element.ALIGN_CENTER);
			ph = new Phrase("OFF", FontFactory.getFont(FontFactory.HELVETICA, 8));
			c1.addElement(ph);
			t.addCell(c1);

			// Finally add all into the document
			response.setHeader("Content-disposition", "inline; filename=\"Employee Attendance.pdf\"");
			document.add(t);
			document.close();
			addPageNumber("temp1.pdf", "newName.pdf", response, request);
		} catch (Exception e) {
			e.printStackTrace();
		}

		return null;
	}

	// Method for adding page number on the document
	public static void addPageNumber(String oldFileName, String newFileName, HttpServletResponse response,
			HttpServletRequest request) {
		try {
			String realPath = ServletActionContext.getServletContext().getRealPath("/assets");
			FileInputStream fis = new FileInputStream(realPath + "/" + "temp1.pdf");
			PdfReader reader = new PdfReader(fis);
			int totalPages = reader.getNumberOfPages();
			PdfStamper stamper = new PdfStamper(reader, response.getOutputStream());
			for (int i = 1; i <= totalPages; i++) {
				getHeaderTable(i, totalPages).writeSelectedRows(0, -1, 34, 30, stamper.getOverContent(i));
			}
			stamper.close();
			fis.close();
		} catch (Exception e) {
			e.printStackTrace();
		}

	}

	public static PdfPTable getHeaderTable(int x, int y) {
		PdfPTable table = new PdfPTable(2);
		try {
			table.setTotalWidth(490);
			table.setLockedWidth(true);
			table.getDefaultCell().setFixedHeight(20);
			table.getDefaultCell().setBorder(Rectangle.NO_BORDER);

			PdfPCell cell = new PdfPCell(new com.itextpdf.text.Phrase((""),
					new com.itextpdf.text.Font(com.itextpdf.text.Font.FontFamily.HELVETICA, 5)));
			cell.setBorder(Rectangle.NO_BORDER);
			table.addCell(cell);

			table.getDefaultCell().setHorizontalAlignment(Element.ALIGN_RIGHT);
			table.getDefaultCell().setBorder(Rectangle.NO_BORDER);

			cell = new PdfPCell(new com.itextpdf.text.Phrase(String.format("Page %d of %d", x, y),
					new com.itextpdf.text.Font(com.itextpdf.text.Font.FontFamily.HELVETICA, 5)));
			cell.setBorder(Rectangle.NO_BORDER);
			cell.setHorizontalAlignment(Element.ALIGN_RIGHT);

			table.addCell(cell);

		} catch (Exception e) {
			System.out.println("getHeaderTable exception" + e.getMessage());
			e.printStackTrace();
		}
		return table;
	}

	@Override
	public void setServletRequest(HttpServletRequest request) {
		this.request = request;
	}

	public HttpServletRequest getServletRequest() {
		return request;
	}

	@Override
	public void setServletResponse(HttpServletResponse response) {
		this.response = response;
	}

	public HttpServletResponse getServletResponse() {
		return response;
	}
}

JSP Pages

Create a JSP page to send the request to action class.

report.jsp
<%@ taglib prefix="s" uri="/struts-tags"%>
<html>
<head>
<title>Struts2 and iText pdf report Integration Example</title>
</head>
<body>
	<h1>Struts2 and iText pdf report Integration Example</h1>
	<s:form action="itextreport">
		<s:submit value="Generate Report"></s:submit>
	</s:form>
</body>
</html>

Map Action Class in Struts.xml

Map the action class in the struts.xml and do not configure the result.

struts.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
	<constant name="struts.devMode" value="true" />
	<package name="default" namespace="/" extends="struts-default">
		<action name="itextreport" class="org.websparrow.ReportAction">
		</action>
	</package>
</struts>

Output :

Now everything is all set. Start your server and deploy the project.

Screen 1

Struts 2 and iText PDF Report Integration Example

Screen 2

Struts 2 and iText PDF Report Integration Example

Similar Posts

About the Author

Atul Rai
I love sharing my experiments and ideas with everyone by writing articles on the latest technological trends. Read all published posts by Atul Rai.
