Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC

By Atul Rai | Last Updated: July 20, 2018

In this Struts 2 tutorial we will create a simple application for Create, Read, Update and Delete (CRUD) operation using JDBC. CRUD is the basic module that most of the project has. I have tried to make it simple as I can.

Before starting the application we need to think about what I need, how can I do it and what will be the flow. Check the below points…

  • Save the user data in the database.
  • Retrieve all the stored data on JSP.
  • Update the selected user data in the database(previous information must be visible to the user before the update).
  • Delete the selected user data from the database.

Similar Posts-

Struts 2 CRUD Example using jQuery JSON and JDBC

Struts 2 CRUD Example using jQuery Ajax and JDBC

Navigation

  1. Software/Library Used
  2. Project Structure in Eclipse
  3. Create Table in Database
  4. Define Filter
  5. Create DAO Class
  6. Create Bean Class
  7. Create Action Classes
    1. Register Action Class
    2. Report Action Class
    3. Update Action Class
    4. Delete Action Class
  8. Create JSP Pages
    1. Register JSP
    2. Report JSP
    3. Update JSP
    4. Delete JSP
  9. Map Action Classes and JSP Pages
  10. Output
  11. Download Source Code

Software/Library Used

  1. Eclipse IDE
  2. Tomcat 8
  3. JDK 8
  4. MySQL Database
  5. struts2 core jars
  6. MySQL connector jar

Project Structure in Eclipse

Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC

Create Table in Database

We need to create a table in our database to store the user information.

struts2crud.sql
CREATE TABLE `struts2crud` (
  `uname` VARCHAR(25) DEFAULT NULL,
  `uemail` VARCHAR(50) NOT NULL,
  `upass` VARCHAR(25) DEFAULT NULL,
  `udeg` VARCHAR(25) DEFAULT NULL,
  PRIMARY KEY (`uemail`)
);

Define Filter

Before starting the code we need define struts 2 filters in web.xml.

web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
	id="WebApp_ID" version="2.5">
	<display-name>Struts2CRUD</display-name>
	<welcome-file-list>
		<welcome-file>register.jsp</welcome-file>
	</welcome-file-list>
	<filter>
		<filter-name>struts2</filter-name>
		<filter-class>org.apache.struts2.dispatcher.ng.filter.StrutsPrepareAndExecuteFilter</filter-class>
	</filter>
	<filter-mapping>
		<filter-name>struts2</filter-name>
		<url-pattern>/*</url-pattern>
	</filter-mapping>
</web-app>

Create DAO Class

This class will communicate with the database. In this class I have created all the methods for connecting to the database, insert data into the database, fetch data from the database, etc.

Admin.java
package org.websparrow.dao;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
import java.sql.SQLException;

public class Admin {

	// method for create connection
	public static Connection getConnection() throws Exception {
		try {
			Class.forName("com.mysql.jdbc.Driver");
			return DriverManager.getConnection("jdbc:mysql://127.0.0.1:3306/websparrow", "root", "");
		} catch (Exception e) {
			e.printStackTrace();
			return null;
		}
	}

	// method for save user data in database
	public int registerUser(String uname, String uemail, String upass, String udeg) throws Exception {
		int i = 0;
		try {
			String sql = "INSERT INTO STRUTS2CRUD VALUES (?,?,?,?)";
			PreparedStatement ps = getConnection().prepareStatement(sql);
			ps.setString(1, uname);
			ps.setString(2, uemail);
			ps.setString(3, upass);
			ps.setString(4, udeg);
			i = ps.executeUpdate();
			return i;
		} catch (Exception e) {
			e.printStackTrace();
			return i;
		} finally {
			if (getConnection() != null) {
				getConnection().close();
			}
		}
	}

	// method for fetch saved user data
	public ResultSet report() throws SQLException, Exception {
		ResultSet rs = null;
		try {
			String sql = "SELECT UNAME,UEMAIL,UPASS,UDEG FROM STRUTS2CRUD";
			PreparedStatement ps = getConnection().prepareStatement(sql);
			rs = ps.executeQuery();
			return rs;
		} catch (Exception e) {
			e.printStackTrace();
			return null;
		} finally {
			if (getConnection() != null) {
				getConnection().close();
			}
		}
	}

	// method for fetch old data to be update
	public ResultSet fetchUserDetails(String uemail) throws SQLException, Exception {
		ResultSet rs = null;
		try {
			String sql = "SELECT UNAME,UEMAIL,UPASS,UDEG FROM STRUTS2CRUD WHERE UEMAIL=?";
			PreparedStatement ps = getConnection().prepareStatement(sql);
			ps.setString(1, uemail);
			rs = ps.executeQuery();
			return rs;
		} catch (Exception e) {
			e.printStackTrace();
			return null;
		} finally {
			if (getConnection() != null) {
				getConnection().close();
			}
		}
	}

	// method for update new data in database
	public int updateUserDetails(String uname, String uemail, String upass, String udeg, String uemailhidden)
			throws SQLException, Exception {
		getConnection().setAutoCommit(false);
		int i = 0;
		try {
			String sql = "UPDATE STRUTS2CRUD SET UNAME=?,UEMAIL=?,UPASS=?,UDEG=? WHERE UEMAIL=?";
			PreparedStatement ps = getConnection().prepareStatement(sql);
			ps.setString(1, uname);
			ps.setString(2, uemail);
			ps.setString(3, upass);
			ps.setString(4, udeg);
			ps.setString(5, uemailhidden);
			i = ps.executeUpdate();
			return i;
		} catch (Exception e) {
			e.printStackTrace();
			getConnection().rollback();
			return 0;
		} finally {
			if (getConnection() != null) {
				getConnection().close();
			}
		}
	}

	// method for delete the record
	public int deleteUserDetails(String uemail) throws SQLException, Exception {
		getConnection().setAutoCommit(false);
		int i = 0;
		try {
			String sql = "DELETE FROM STRUTS2CRUD WHERE UEMAIL=?";
			PreparedStatement ps = getConnection().prepareStatement(sql);
			ps.setString(1, uemail);
			i = ps.executeUpdate();
			return i;
		} catch (Exception e) {
			e.printStackTrace();
			getConnection().rollback();
			return 0;
		} finally {
			if (getConnection() != null) {
				getConnection().close();
			}
		}
	}
}

Create Bean Class

Create the getter and setters of parameters.

EmpBean.java
package org.websparrow.bean;

public class EmpBean {

	// generate getter and setters
	private String uname, uemail, upass, udeg;
	int srNo;
}

Create Action Classes

We need to create the four action classes for every operation to make it simple.

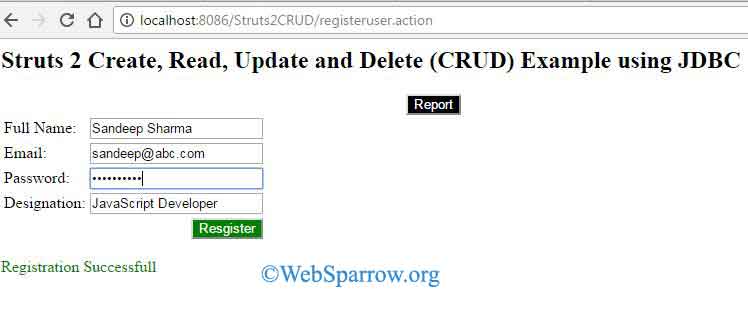

1- Register Action Class

In this class, we get the user information and save into the database. If data inserted successfully display success message otherwise show the error message.

RegisterAction.java
package org.websparrow.action;

import org.websparrow.dao.Admin;

import com.opensymphony.xwork2.ActionSupport;

public class RegisterAction extends ActionSupport {

	private static final long serialVersionUID = 2139116285823340125L;
	private String uname, uemail, upass, udeg;
	private String msg = "";
	Admin admin = null;
	int ctr = 0;

	@Override
	public String execute() throws Exception {
		admin = new Admin();

		try {
			ctr = admin.registerUser(uname, uemail, upass, udeg);
			if (ctr > 0) {
				msg = "Registration Successfull";
			} else {
				msg = "Some error";
			}
		} catch (Exception e) {
			e.printStackTrace();
		}
		return "REGISTER";
	}

	public String getUname() {
		return uname;
	}

	public void setUname(String uname) {
		this.uname = uname;
	}

	public String getUemail() {
		return uemail;
	}

	public void setUemail(String uemail) {
		this.uemail = uemail;
	}

	public String getUpass() {
		return upass;
	}

	public void setUpass(String upass) {
		this.upass = upass;
	}

	public String getUdeg() {
		return udeg;
	}

	public void setUdeg(String udeg) {
		this.udeg = udeg;
	}

	public String getMsg() {
		return msg;
	}

	public void setMsg(String msg) {
		this.msg = msg;
	}

	public int getCtr() {
		return ctr;
	}

	public void setCtr(int ctr) {
		this.ctr = ctr;
	}
}

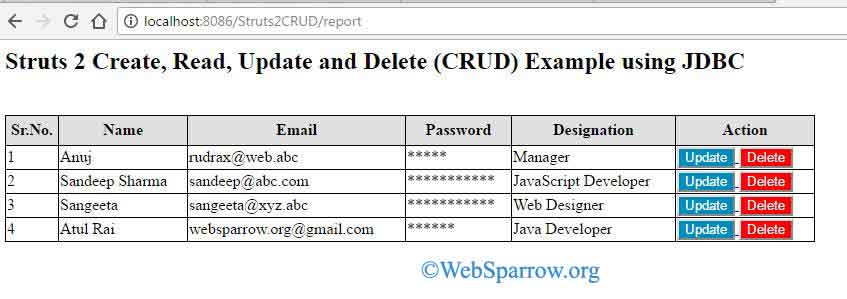

2- Report Action Class

This class will fetch all the stored data from database and display on JSP. If data is available in database display it else displays No Data Available.

ReportAction.java
package org.websparrow.action;

import java.sql.ResultSet;
import java.util.ArrayList;
import java.util.List;

import org.websparrow.bean.EmpBean;
import org.websparrow.dao.Admin;

import com.opensymphony.xwork2.ActionSupport;

public class ReportAction extends ActionSupport {

	private static final long serialVersionUID = 6329394260276112660L;
	ResultSet rs = null;
	EmpBean bean = null;
	List<EmpBean> beanList = null;
	Admin admin = new Admin();
	private boolean noData = false;

	@Override
	public String execute() throws Exception {
		try {
			beanList = new ArrayList<EmpBean>();
			rs = admin.report();
			int i = 0;
			if (rs != null) {
				while (rs.next()) {
					i++;
					bean = new EmpBean();
					bean.setSrNo(i);
					bean.setUname(rs.getString("UNAME"));
					bean.setUemail(rs.getString("UEMAIL"));
					bean.setUpass(rs.getString("UPASS").replaceAll("(?s).", "*"));
					bean.setUdeg(rs.getString("UDEG"));
					beanList.add(bean);
				}
			}
			if (i == 0) {
				noData = false;
			} else {
				noData = true;
			}
		} catch (Exception e) {
			e.printStackTrace();
		}
		return "REPORT";
	}

	public boolean isNoData() {
		return noData;
	}

	public void setNoData(boolean noData) {
		this.noData = noData;
	}

	public List<EmpBean> getBeanList() {
		return beanList;
	}

	public void setBeanList(List<EmpBean> beanList) {
		this.beanList = beanList;
	}
}

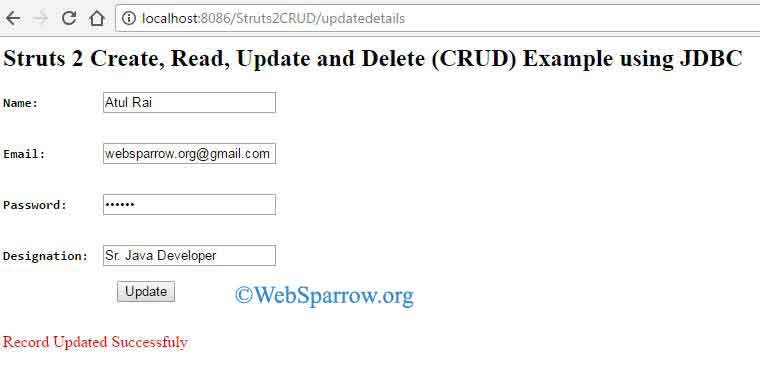

3- Update Action Class

In this class, We will fetch the previous data from the database and update the new data in the database.

UpdateAction.java
package org.websparrow.action;

import java.sql.ResultSet;

import org.websparrow.dao.Admin;

import com.opensymphony.xwork2.ActionSupport;

public class UpdateAction extends ActionSupport {

	private static final long serialVersionUID = -1905974197186620917L;
	private String uname = "", uemail = "", upass = "", udeg = "", uemailhidden = "";
	private String msg = "";
	ResultSet rs = null;
	Admin dao = new Admin();
	String submitType;

	@Override
	public String execute() throws Exception {
		try {
			if (submitType.equals("updatedata")) {
				rs = dao.fetchUserDetails(uemail.trim());
				if (rs != null) {
					while (rs.next()) {
						uname = rs.getString("UNAME");
						uemail = rs.getString("UEMAIL");
						upass = rs.getString("UPASS");
						udeg = rs.getString("UDEG");
					}
				}
			} else {
				int i = dao.updateUserDetails(uname, uemail, upass, udeg, uemailhidden);
				if (i > 0) {
					msg = "Record Updated Successfuly";
				} else {
					msg = "error";
				}
			}

		} catch (Exception e) {
			e.printStackTrace();
		}

		return "UPDATE";
	}

	public String getUname() {
		return uname;
	}

	public void setUname(String uname) {
		this.uname = uname;
	}

	public String getUpass() {
		return upass;
	}

	public void setUpass(String upass) {
		this.upass = upass;
	}

	public String getUdeg() {
		return udeg;
	}

	public void setUdeg(String udeg) {
		this.udeg = udeg;
	}

	public String getUemail() {
		return uemail;
	}

	public void setUemail(String uemail) {
		this.uemail = uemail;
	}

	public String getMsg() {
		return msg;
	}

	public void setMsg(String msg) {
		this.msg = msg;
	}

	public String getUemailhidden() {
		return uemailhidden;
	}

	public void setUemailhidden(String uemailhidden) {
		this.uemailhidden = uemailhidden;
	}

	public String getSubmitType() {
		return submitType;
	}

	public void setSubmitType(String submitType) {
		this.submitType = submitType;
	}
}

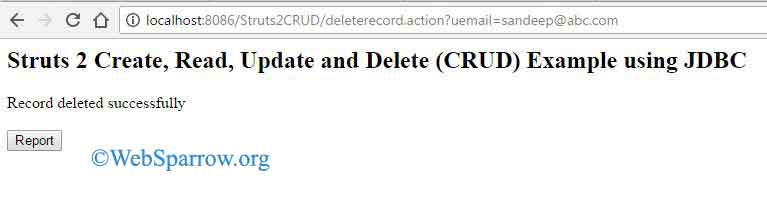

4- Delete Action Class

Delete the select data from the database.

DeleteAction.java
package org.websparrow.action;

import org.websparrow.dao.Admin;

import com.opensymphony.xwork2.ActionSupport;

public class DeleteAction extends ActionSupport {

	private static final long serialVersionUID = -146601914103585418L;
	String uemail, msg;
	Admin dao = new Admin();

	@Override
	public String execute() throws Exception {
		try {
			int isDeleted = dao.deleteUserDetails(uemail);
			if (isDeleted > 0) {
				msg = "Record deleted successfully";
			} else {
				msg = "Some error";
			}
		} catch (Exception e) {
			e.printStackTrace();
		}
		return "DELETE";
	}

	public String getUemail() {
		return uemail;
	}

	public void setUemail(String uemail) {
		this.uemail = uemail;
	}

	public String getMsg() {
		return msg;
	}

	public void setMsg(String msg) {
		this.msg = msg;
	}
}

Create JSP Pages

Create the JSP pages that interact with the users. For more convenience, we have created the separate pages for every operation.

1- Register JSP

On this page user will fill out all the information.

register.jsp
<%@taglib prefix="s" uri="/struts-tags"%>
<html>
<head>
<title>Register</title>
<style type="text/css">
.button-register {background-color: green;color: white;}
.button-report {background-color: #000000;color: white;margin-left: 30%;}
</style>
</head>
<body>
	<h2>Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC</h2>
	<a href="report"><button class="button-report" type="button">Report</button></a>
	<s:form action="registeruser.action" method="post">
		<s:textfield label="Full Name" name="uname" />
		<s:textfield label="Email" name="uemail" />
		<s:password label="Password" name="upass" />
		<s:textfield label="Designation" name="udeg" />
		<s:submit cssClass="button-register" value="Resgister" />
	</s:form>
	<s:if test="ctr>0">
		<span style="color: green;"><s:property value="msg" /></span>
	</s:if>
	<s:else>
		<span style="color: red;"><s:property value="msg" /></span>
	</s:else>
</body>
</html>

2- Report JSP

This page display all the data that retrieved from the database.

report.jsp
<%@taglib prefix="s" uri="/struts-tags"%>
<html>
<head>
<title>Report</title>
<style>
table, td, th {border: 1px solid black;}
table {border-collapse: collapse;width: 60%;}
th {height: 30px;}
.button-update {background-color: #008CBA;color: white;}
.button-delete {background-color: red;color: white;}
</style>
</head>
<body>
	<h2>Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC</h2>
	<div style="margin-top: 40px;">
		<s:if test="noData==true">
			<table>
				<thead>
					<tr style="background-color: #E0E0E1;">
						<th>Sr.No.</th>
						<th>Name</th>
						<th>Email</th>
						<th>Password</th>
						<th>Designation</th>
						<th>Action</th>
					</tr>
				</thead>
				<s:iterator value="beanList">
					<tr>
						<td><s:property value="srNo" /></td>
						<td><s:property value="uname" /></td>
						<td><s:property value="uemail" /></td>
						<td><s:property value="upass" /></td>
						<td><s:property value="udeg" /></td>
						<td>
							<a href="updatedetails.action?submitType=updatedata&uemail=<s:property value="uemail"/>">
								<button class="button-update">Update</button>
							</a>
							<a href="deleterecord.action?uemail=<s:property value="uemail"/>">
								<button class="button-delete">Delete</button>
							</a>
						</td>
					</tr>
				</s:iterator>
			</table>
		</s:if>
		<s:else>
			<div style="color: red;">No Data Found.</div>
		</s:else>
	</div>
</body>
</html>

3- Update JSP

On this page, we will fetch the previous data of the selected row and update the new data into the database.

update.jsp
<%@taglib prefix="s" uri="/struts-tags"%>
<html>
<head>
<title>Update</title>
</head>
<body>
	<h2>Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC</h2>
	<form action=updatedetails method="post">
		<pre>
<b>Name:         </b><input type="text" name="uname" value='<s:property value="uname"/>'>


<b>Email:        </b><input type="email"  name="uemail" value='<s:property value="uemail"/>'>
		            <input type="hidden" name="uemailhidden" value='<s:property value="uemail"/>'>

<b>Password:     </b><input type="password" name="upass" value='<s:property value="upass"/>'>


<b>Designation:  </b><input type="text" name="udeg" value='<s:property value="udeg"/>'>

		<button name="submitType" value="update" type="submit">Update</button>
		</pre>
	</form>
	<s:if test="ctr>0">
		<span style="color: red;"><s:property value="msg" /></span>
	</s:if>
	<s:else>
		<span style="color: red;"><s:property value="msg" /></span>
	</s:else>
</body>
</html>

4- Delete JSP

Show the status if the selected record is deleted or not.

delete.jsp
<%@taglib prefix="s" uri="/struts-tags"%>
<html>
<head>
<title>Delete</title>
</head>
<body>
	<h2>Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC</h2>
	<span><s:property value="msg" /></span><br><br>
	<a href="report">
		<button type="button">Report</button>
	</a>
</body>
</html>

Map Action Classes and JSP Pages

Finally, map the all-action class results to the corresponding JSP pages in struts.xml

struts.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
"-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
"http://struts.apache.org/dtds/struts-2.0.dtd">
<struts>
	<package name="default" extends="struts-default">
		<action name="registeruser" class="org.websparrow.action.RegisterAction">
			<result name="REGISTER">/register.jsp</result>
		</action>
		<action name="report" class="org.websparrow.action.ReportAction">
			<result name="REPORT">/report.jsp</result>
		</action>
		<action name="updatedetails" class="org.websparrow.action.UpdateAction">
			<result name="UPDATE">/update.jsp</result>
		</action>
		<action name="deleterecord" class="org.websparrow.action.DeleteAction">
			<result name="DELETE">/delete.jsp</result>
		</action>
	</package>
</struts>

Output:

Now everything is all set, deploy the project on your web server.

Register Screen

Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC

Report Screen

Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC

Update Screen

Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC

Delete Screen

Struts 2 Create, Read, Update and Delete (CRUD) Example using JDBC

Similar Posts

About the Author

Atul Rai
I love sharing my experiments and ideas with everyone by writing articles on the latest technological trends. Read all published posts by Atul Rai.
